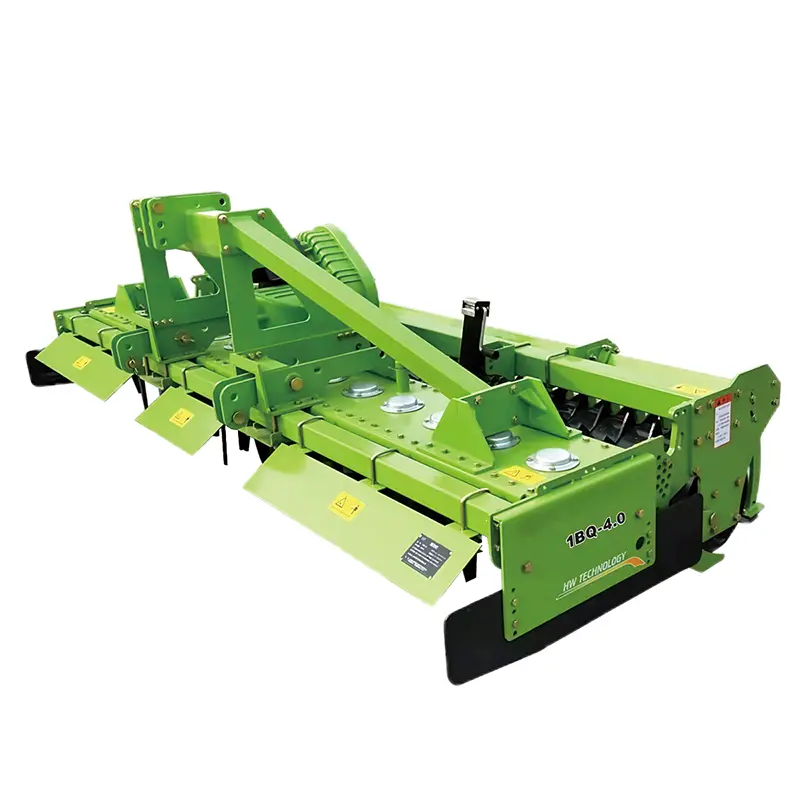

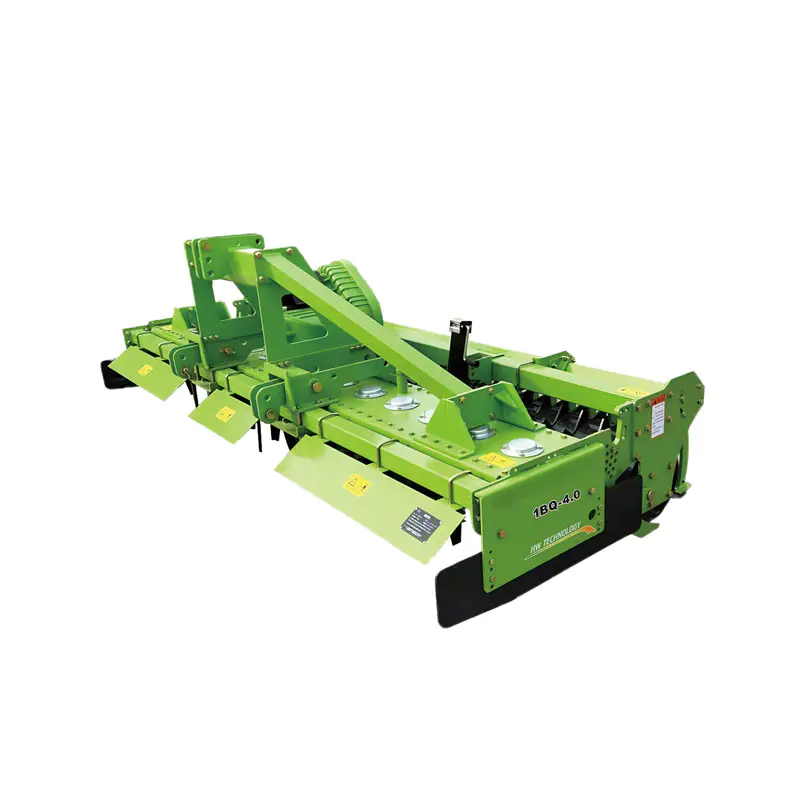

Our Power harrow is a combination of efficiency, flexibility and durability in agricultural operations. It is equipped with a powerful power system that can easily cope with a wide range of soil conditions, whether it is deep ploughing and loosening the soil or surface fine crushing.
Product Parameters
| Power Harrow | ||||
| Model name | 1BQ-2.5 type Power harrow | 1BQ-3.0 type Power harrow | 1BQ-3.5 type Power harrow | 1BQ-4.0 type Power harrow |
| Connection method with matching tractor | Three point suspension | Three point suspension | Three point suspension | Three point suspension |
| Working width (mm) | 2500 | 3000 | 3500 | 4000 |
| Supporting power (kw) | 90-147 | 110.3-176 | 132-176 | 147-191 |
| Harrow depth (mm) | 100～260 | 100～260 | 100～260 | 100～260 |
| Number of rake teeth | 20 pcs | 24 pcs | 28 pcs | 32 pcs |
| Number of drive shafts | 10 groups | 12 groups | 14 groups | 16 groups |
| Homework speed (km/h) | 3～6 | 3～6 | 3～6 | 3～6 |
| Dimensions (mm) | 1450×2600×1200 | 1450×3100×1200 | 1450×3600×1200 | 1450×4100×1200 |
| Harrow tooth spacing (mm) | 245 | 245 | 245 | 245 |
| Output spindle speed (r/min) | 346 | 346 | 410 | 410 |
